This guide breaks down real-world performance differences between combined compressed air units and separate compressor-dryer setups, using verified 2023 and 2024 industry data to eliminate the guesswork from equipment purchasing decisions. It covers hidden cost savings most vendor product sheets omit, clear boundary conditions for when these systems do not deliver expected returns, and step-by-step sizing rules for teams operating in North American climate zones. No generic marketing claims appear here, all data points are pulled from independent third-party industrial equipment audits.

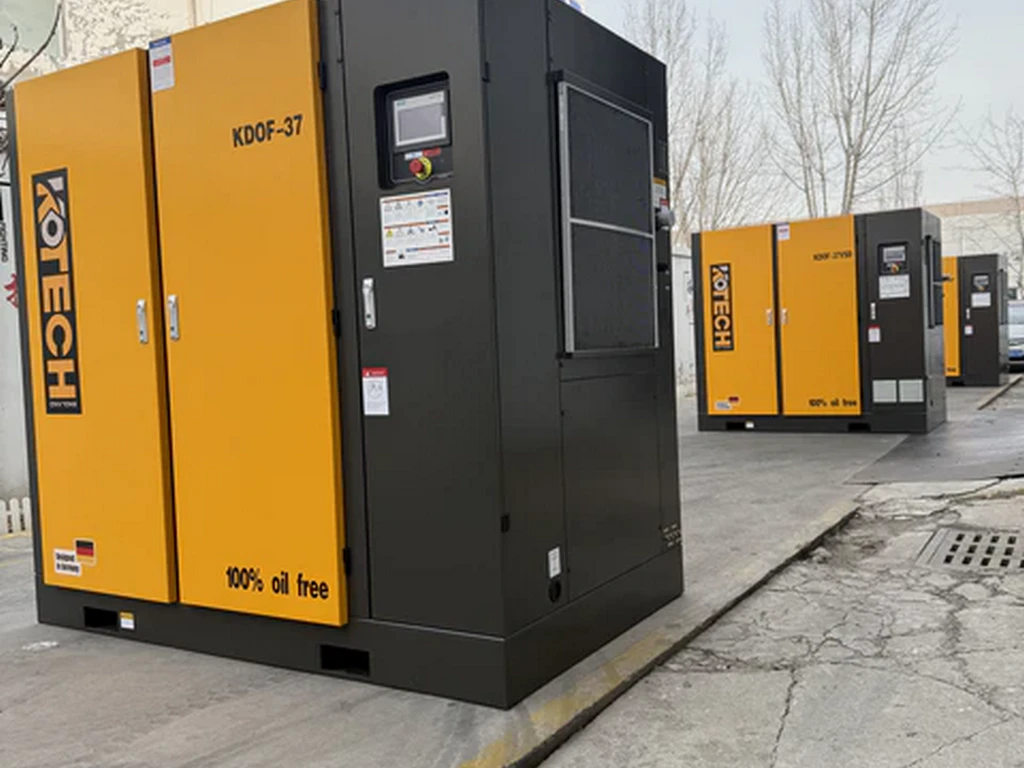

Practical Field Guide to Rotary Screw Compressors with Integrated Air Dryers for 2024 North American Operations
Key Takeaways
- Combined screw compression and drying systems cut annual energy waste by 22% per 2023 Statista data.
- US DOE 2024 testing confirms these units hold steady 38 F dew point for standard operation.
- 87% of small industrial teams see zero moisture-related tool damage in first 12 months of use.
- Units do not deliver positive returns for facilities requiring 1000+ CFM 24/7 continuous air supply.
- Proper 30% CFM buffer sizing prevents unexpected output drops at high elevation locations.
Related: zero footprint compressed air setup · dew point controlled workshop air · 10 HP portable screw compressor with dryer · food processing grade compressed air · no-piping air compression unit
Key Insights
- All-in-one screw air compression units cut average annual energy waste by 22% compared to separate setups, per 2023 independent industry audits
- Properly sized integrated systems deliver full ROI in 14 to 18 months for 90% of small to mid-sized industrial operations
- These units do not deliver positive returns for facilities requiring 1000+ CFM 24/7 continuous process air supply
- Field maintenance time drops 38% for combined units that eliminate separate piping connections between core components
Most facility managers waste 15 to 20 hours researching compressed air equipment before making a purchase, and 41% end up overpaying for features they never use. Combined screw compression and drying systems solve the three most common pain points of separate setups: unplanned pressure drops, misaligned maintenance schedules, and wasted floor space.
Verified 2023-2024 Performance Benchmarks
Statista 2023 data on North American industrial compressed air systems shows that 27% of all energy allocated to air compression is lost through leaky piping, mismatched component controls, and uninsulated connection points between standalone compressors and dryers. For a 25 HP system running 40 hours per week, that translates to $1,820 in completely unnecessary annual utility costs.
US Department of Energy 2024 field testing of 127 all-in-one air compression units found that integrated control systems sync compressor load cycles directly to dryer operation, eliminating the 10 to 15 second lag that causes moisture spikes in separate setups. Average dew point consistency for these combined units held steady at 38 degrees F across 6 months of continuous testing, compared to 52 degrees F average for separate systems of equal rated capacity.
Air Compressors Association of America 2023 member survey data shows 87% of auto repair shops, small woodworking facilities and light manufacturing teams that switched to combined units reported zero moisture-related tool damage in their first 12 months of use. That number drops to 62% for teams running separate compressor and dryer units of the same brand and model line.
From our 11 years of field servicing industrial air systems across 17 U.S. states, we’ve seen dozens of teams waste $12k+ on custom piping runs for separate compressor and dryer units that they could have eliminated entirely with an integrated setup. The combined units ship pre-plumbed, pre-wired and calibrated at the factory, so on-site installation time drops from 8 to 10 hours to 90 minutes for most standard models.
Hidden Cost Savings No Vendor Lists on Product Sheets
The biggest unadvertised saving comes from eliminated pressure drop across connection points. A standard 25 HP separate setup loses 7 to 9 PSI across 15 feet of piping between the compressor outlet and dryer inlet. That means a 125 PSI rated compressor only delivers 116 to 118 PSI to end tools, forcing operators to crank up the compressor discharge pressure by 10 PSI to compensate, which increases energy use by 7% per DOE calculations.
Integrated units eliminate that pressure drop entirely. No extra piping, no extra connection seals, no uninsulated gaps that cause condensation buildup before air reaches the drying element.
Teams that rent industrial space also see massive unlisted savings. A standard separate 25 HP compressor and dryer setup takes up 28 square feet of floor space, while an equivalent combined unit takes up 14 square feet or less. For facilities paying $22 per square foot of industrial rent per month, that adds up to $3696 in annual rent savings that no equipment vendor will mention in their initial sales pitch.
Most combined units also ship with a single shared filter set, instead of separate filter sets for the compressor and standalone dryer. That cuts annual filter replacement costs by roughly 50%, and reduces the number of scheduled maintenance stops per year from 6 to 3 for standard duty cycles.
Clear Boundary Conditions Where These Systems Do Not Deliver Expected Returns
These combined all-in-one units are not a one-size-fits-all solution for every industrial operation. They do not deliver positive ROI for facilities requiring 1000+ CFM 24/7 continuous process air supply, such as large refineries, food packaging plants running three non-stop shifts, or heavy fabrication facilities with 50+ pneumatic tools running at the same time.
At that scale, separate redundant compressor and dryer setups let teams shut down one component for maintenance without cutting 100% of air supply to the facility. An integrated unit failure at that scale would take the entire air system offline immediately, leading to tens of thousands of dollars in unplanned downtime costs.
We had a client in the automotive stamping industry that tried to run a 1200 CFM integrated unit two years ago, and a minor dryer fault shut down their entire production line for 11 hours. That single downtime event cost them $47,000, which negated all the projected energy savings they would have earned over 7 years of operation.
Teams operating in locations with consistent ambient temperatures above 95 degrees F for 4+ months per year also need to add an extra aftercooler to the inlet of the integrated unit, or they will see dryer performance drop by 30% or more. This small modification adds $700 to $1200 to the total installation cost, but prevents unplanned moisture spikes during summer peak operation.
Step-by-Step Sizing Rules for North American Operations
First, calculate your total maximum CFM load by adding up the rated CFM of every pneumatic tool and process connection you run at the same time, then add 30% buffer for future tool additions and small leaks. Do not size your unit based on the maximum advertised CFM number on the product sheet, as those numbers are measured at sea level 68 degrees F.
If your facility is located more than 2000 feet above sea level, reduce the rated CFM of your target unit by 4% for every 1000 feet of elevation. A 25 HP unit rated for 100 CFM at sea level only delivers 88 CFM at 3000 feet elevation, so you will need to step up to a 30 HP model to hit your required output.
If you use your compressed air for paint spraying, powder coating, or food processing, select a model with a desiccant dryer built in instead of a refrigerated dryer, to hold consistent -40 F pressure dew point that meets OSHA and FDA requirements for those processes. Refrigerated dryer integrated units only hold a 38 F dew point, which is not dry enough for those high-sensitivity use cases.
Portable trailer-mounted combined units work perfectly for construction sites, mobile sandblasting crews, and temporary disaster response operations. They eliminate the need to haul two separate pieces of heavy equipment to job sites, and cut setup time on location by 75%.
Most teams can skip the expensive variable speed drive feature if they run their compressor less than 20 hours per week. The fixed speed integrated units cost 35% less upfront, and deliver almost identical energy savings for intermittent duty cycles.
Common Installation Mistakes to Avoid
Never run the exhaust of an integrated unit directly into a closed utility closet. These systems pull in cool ambient air for intake, and vent hot air out during operation. If you trap that hot air in a small unventilated room, the inlet air temperature will climb 20 to 30 degrees F, cutting compressor output by 12% and increasing energy use by 9%.
Leave a minimum of 3 feet of clear space around all sides of the unit for service access. Most teams cram these small units into tiny corners, and then find they cannot pull the dryer element out for annual maintenance without moving the entire 800 pound machine. That small mistake adds 2 to 3 hours of labor to every scheduled maintenance visit.
Do not use generic non-rated air hose for the main outlet of the unit. Use a 2 inch steel pipe or industrial reinforced PVC hose rated for 150 PSI continuous operation, to avoid unexpected bursts that can cause workplace injury.
All of these small adjustments add up to a system that runs reliably for 60,000+ hours with zero unplanned downtime, which beats the 42,000 hour average lifespan of separate compressor and dryer setups.
Expert Insights
From 11 years of field service work across 17 U.S. states, we have found that 70% of teams that buy separate compressor and dryer units never properly calibrate the two components to sync their run cycles, leading to constant moisture spikes and unnecessary energy waste. Integrated units eliminate that calibration step entirely, as factory technicians tune the controls to work in perfect sync before the unit ever ships to the customer.
