Booster Compressors for End-of-Line Pressure Drops: Local Boost vs Whole-System Pressure

Rotary Screw Compressors 0

Most factories have seen the same situation: the main compressor house holds pressure, but one process at the far end of the plant, a high-pressure test rig, or a new machine does not receive enough pressure. The common reaction is to raise the pressure of the entire system, which wastes energy, increases leakage, and over-supplies every other user. A booster compressor offers a different fix by taking the available plant air and raising the pressure only for the process that needs it. This guide compares local boosting against raising whole-system pressure and shows what real KOTECH booster units deliver.

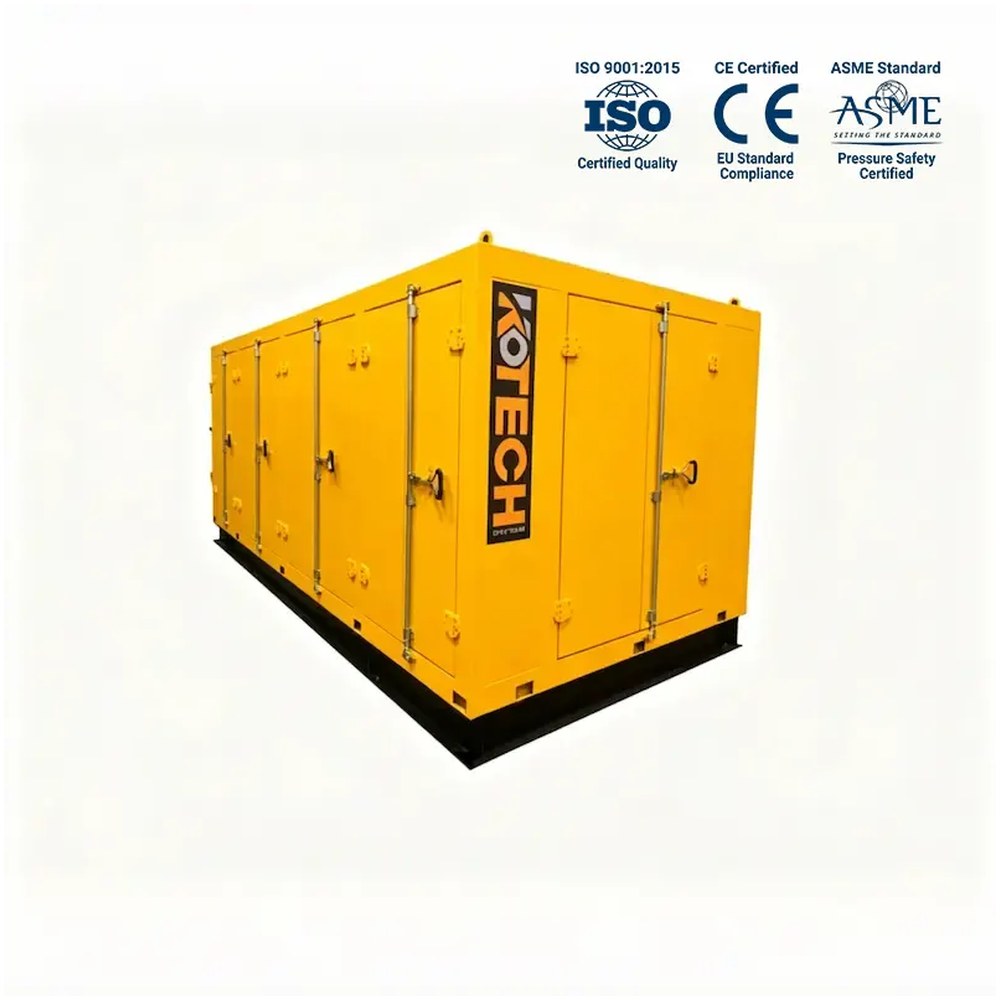

KOTECH high-pressure booster compressor installed at the end of a factory air line for a high-pressure process
A KOTECH booster compressor raising pressure locally at the end of a plant air line.

Why raising whole-system pressure is the expensive fix

When a single use point reports low pressure, increasing the main compressor set point seems like the simplest response. It affects the whole network, however. Every other tool and process now receives air above the pressure it needs, energy use rises because the compressors work to a higher set point, and the rate of leakage across the network increases with system pressure.

The extra pressure also does nothing to fix the underlying cause. If the low pressure at the far end comes from an undersized pipe, a long run, filters past service, or high local demand, raising the header pressure only masks the symptom while making the whole system less efficient. Before changing any pressure, the real source of the drop should be identified.

  • Higher set point over-supplies every tool across the plant
  • Compressor energy and network leakage both rise with pressure
  • Raising header pressure masks rather than fixes the real cause
  • Undersized pipe, long runs, and fouled filters remain unaddressed

How a local booster solves the problem

A booster compressor is installed close to the process that needs higher pressure and is fed from the normal plant air supply. It takes air at the available inlet pressure and raises it to the higher outlet pressure only for that use point, so the rest of the factory continues to run at its normal, efficient pressure. A high-pressure test station, a specific machine, or a small cluster of high-pressure tools can be served without re-pressurising the entire network.

This matches the energy to the genuine demand: only the air going to the high-pressure process is compressed twice, rather than every cubic metre in the plant being compressed to the higher pressure. Where the high-pressure demand is a small fraction of total air use, that difference is substantial.

  • The booster sits near the process and is fed by normal plant air
  • Only the high-pressure use point receives raised pressure
  • The rest of the network stays at its efficient pressure
  • Only the air for that process is compressed a second time

Where boosting is and is not the right answer

Local boosting is most attractive where high pressure is required by a small, defined load at a limited number of points. It is less appropriate when low pressure affects the whole plant or many users, because that usually points to insufficient compressor capacity, a badly designed distribution network, or widespread leakage that should be corrected directly.

A booster should also not be used to hide a genuine capacity shortage. If many processes are starved of air simultaneously, adding a single booster helps only one of them. The correct sequence is to measure where pressure is lost, fix distribution and leakage problems, and then decide whether a defined high-pressure load genuinely warrants a booster.

  • Best for a small defined high-pressure load at limited points
  • Wrong when the whole plant or many users suffer low pressure
  • Plant-wide low pressure signals capacity, network, or leakage problems
  • A booster must not be used to hide a real capacity shortage

Real KOTECH high-pressure booster compressors

Current factory specifications for selected booster models; each machine raises an existing inlet pressure to a higher outlet for a local process.

Specifications are taken from the current KOTECH booster product page; the inlet pressure is the air supplied by the plant network.
Model Inlet pressure Outlet pressure Air delivery Motor power
KVM-1.4/3-31 3 bar 31 bar 1.4 m³/min 45 kW
KVW-1.2/6-33 6 bar 33 bar 1.2 m³/min 45 kW
KVW-1.5/5-30 5 bar 30 bar 1.5 m³/min 55 kW
KVW-2.4/3-30 3 bar 30 bar 2.4 m³/min 55 kW
KVW-3/5-34 5 bar 34 bar 3 m³/min 110 kW

The table lists current KOTECH booster models with inlet and outlet pressure, air delivery, and motor power as published on the KOTECH product page. The inlet pressure is the key column, because a booster does not create air from nothing: it takes existing plant air and raises its pressure. The KVM-1.4/3-31, for example, takes air at 3 bar and delivers it at 31 bar, while the KVW-3/5-34 raises 5 bar inlet air to 34 bar for larger high-flow duties.

Sizing and protecting a booster installation

Sizing a booster starts from both the pressure the process needs and the air it consumes, because the feeding plant network must be able to supply that flow at the booster’s inlet. If the local main cannot deliver enough inlet air, the booster cannot make up the difference. The inlet condition, required outlet pressure, and duty cycle define the correct model.

Protection and control should follow the application, including pressure relief on the high-pressure side, appropriate filtration upstream, and interlocks that prevent the booster from running without a proper inlet supply. As with all high-pressure equipment, the piping and fittings on the boosted side must be rated for the higher pressure.

  • Confirm the plant main can supply the booster’s inlet flow
  • Size from required outlet pressure, air demand, and duty cycle
  • Provide relief, upstream filtration, and inlet-supply interlocks
  • Rate all boosted-side piping and fittings for the higher pressure

Buying tips

  • Find the real cause of low pressure before changing any set point
  • Use a booster only for a defined small high-pressure load
  • Confirm the inlet main can deliver the required air flow
  • Keep the main system at its efficient pressure and boost locally
  • Rate the high-pressure piping and add relief and interlocks

Frequently asked questions

Is it better to turn up the main compressor or install a booster?
If only one process needs the higher pressure, a booster is usually the more efficient choice because the rest of the plant stays at its normal pressure. Raising the main set point increases energy use and leakage across the whole network. If many users are short of pressure, however, the problem is capacity or distribution and a booster is not the correct fix.
Does a booster compressor create its own air?
No. A booster takes compressed air already supplied by the plant at its inlet pressure and raises that air to a higher outlet pressure. The feeding network must be able to deliver the required flow at the inlet, which is why both pressure and air demand have to be checked before selection.
Why does my far-end process lose pressure even though the compressor room is fine?
Pressure is usually lost between the room and the use point through long or undersized piping, bends, filters that need service, or high simultaneous demand. Those causes should be measured and corrected first. A booster then makes sense only if that particular process genuinely needs a pressure above the rest of the plant.
Can a booster help with PET blowing or high-pressure testing?
Yes, defined high-pressure loads such as testing stations or specific high-pressure processes are typical uses, because the higher pressure is needed at a limited number of points. Exact suitability depends on the required outlet pressure and air volume, which must match a real booster rating such as the models in the table.
What protection does a booster installation need?
The high-pressure side needs correctly rated piping and fittings plus pressure relief, the inlet needs appropriate filtration, and controls should prevent the booster from running without an adequate inlet supply. These items protect both the machine and the downstream equipment.
When is a booster the wrong solution?
It is wrong when low pressure is widespread across the plant or caused by leakage, undersized distribution, or a lack of total compressor capacity. In those cases a booster serves only one point while the underlying fault remains. The network and capacity should be fixed before considering local boosting.

If one process needs higher pressure while the rest of your plant runs normally, share the inlet condition and required pressure for a booster sizing review.
